      Whitey's Miata Seat Swap

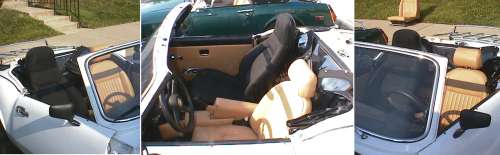

                       Initial size comparison

   Installing Miata Seats in a Spitfire
The Iinitial Trial Fit and Comparison         The Mechanical Mounting                       The Results



Dimension Miata Spitfire
Seat Base Width U-19.5"
L-15.5"		 U-17"
L-15"
Seat Base Length U-22"
L-20"		 U-20"
L-18"
Seat Base Front
edge to Floor		 8" 7"
Backrest Width 18" 17.5"
Backrest Height UP-30"
Dpos-28"		 UP-29"
Dpos-28"
Backrest Thickness Main-4"
Bolster-7"		 Main-3.5"
Bolster-5"
Floor to headrest UP-32"
Dpos-30"		 UP-26.5"
Dpos-24.5"
Headrest Width 10" 9"

Side 3/4 View
   Legend        all dimensions are estimated and are relative to the firmness of the padding
U -upper edge L -lower edge nearly right above runners
UP   -straight up position Dpos -Drivers layed back position
Main -Main section Bolster -Side Bolster
Back View\
Note the map pocket on
back of passenger seat

Front View
Seat cushion leading edges are
almost same height from floor

Left Side
Miata seat cushion base
is much thicker

Right Side View
Although the feet have not been trimmed down or
the seat  fastened in, just sitting the Miata
seat in the car makes me believe this is worth trying
