  The Physical Nature of the Beast

  Here are the physical dimensions of
    the body of the DCOE carburator.

Clicking on the images will display
a larger version of the drawing
in a seperate window ready printing.

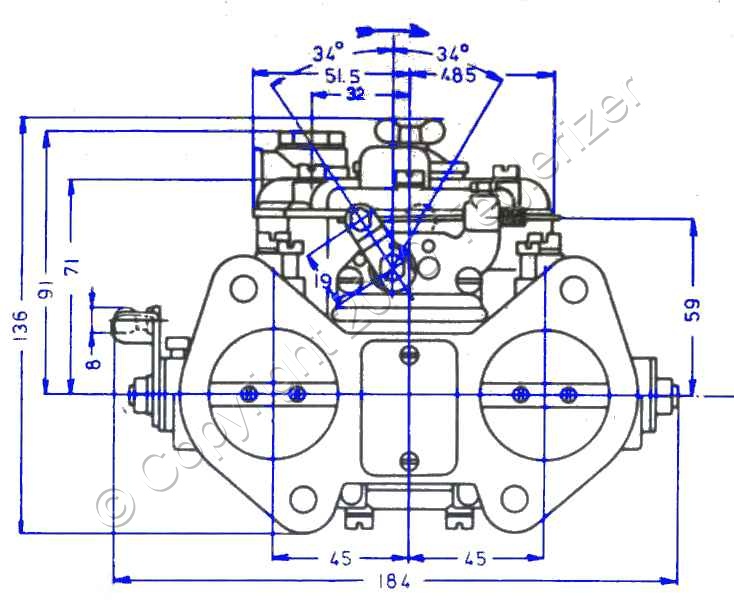

viewing
the carb
from the
manifold
mount
flange
end.

All
dimensions
are in
millimeters.

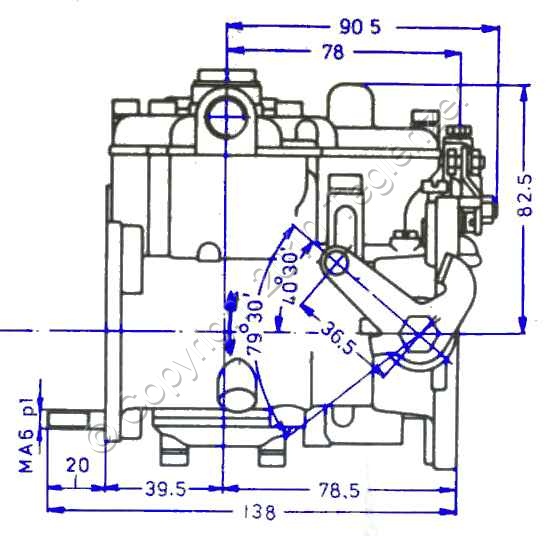

viewing
the carb
from the
fuel port
side.

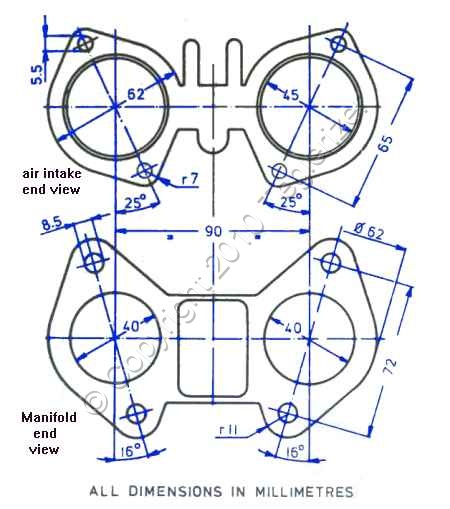

the mating
surfaces
